Ford 2.5l Duratec - TBP48 ITB Kit

Details of Base kit

The Jenvey Ford Duratec 2.5L electronic fuel injection (EFI) individual throttle body kit (ITB) has been design and developed in house to significantly increase performance and throttle response of your engine leading to a reduction in lap times. This engine was originally fitted into the Ford Mondeo but is often found in a lot of kit cars and track cars.

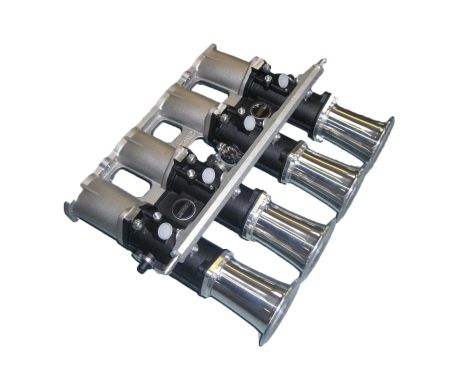

This kit is the perfect solution for fast road or track focused engines with the ability to run up to 300bhp. The base kit includes a pair of 48mm TB DCOE throttle bodies, 60mm long spun aluminium air horns and a billet aluminium fuel rail along with a cast DCOE manifold which has a 12.5 degree curve and can be ported up to 52mm to suit larger bodies on engines over 300bhp.

CKFD16DTH Is a direct to head kit often used when space is tight in the engine bay.

CKFD16-TD has been designed using our Jenvey Heritage DCOE throttle bodies to maintain the period look in your engine bay whilst benefiting from the numerous features of EFI.

Kit performance is enhanced by careful positioning of the EFI fuel injectors being located further upstream than standard and directly in the part throttle turbulence of the butterfly.  This allows increased time/distance for improved fuel mixing increasing torque and power where its needed.  Our spindles profiled to minimise cross sectional area at full throttle and an 8 degree shut angle (shallower than most) gives finer control at small throttle openings.  Our kits come built and balanced ready to fit you your engine and win races.

Jenvey Dynamics design, develop and manufacture all products in house often working with leading engine builders.  Uniquely, with our own foundry, all castings are created in the same factory that they are machined and built in.  Our cast systems are significantly lighter than fully CNC parts and all major components are backed up by rig tests of over 1 million cycles.  All our standard kits are proven but our throttle systems are extremely modular allowing bespoke throttle sizes and system lengths. Please order components individually for bespoke application.

This Jenvey kit requires an aftermarket ECU.

Drawing and other information can be found at the bottom of the page

Option and Accessories

Throttle operation can either be with a cable linkage kit or electronic throttle actuator.  (CLS2-TBO1 / CLD2-TBO1 / ETA2-TB)

An idle air system can help make road cars more useable but is not required with electronic actuation

We offer a range of injectors but recommend Pico for this kit – see our injector sizing chart.

To fit a panel filter to this kit you can use ABB2-CKFD16

For the 60mm airhorns the kit comes with we recommend a 90mm filter (if you have the space)

Price From £1,174.80 £979.00

All prices exclude VAT

All prices include VAT

Build Your Kit
Ford 25l Duratec - TBP48 Kit   + £1,174.80 £979.00

* Required Fields

Price as Configured

All prices exclude VAT

All prices include VAT

£1,174.80 £979.00

View Drawing Manifold Drawing
View Document Fuel System Setup
