Lucas EFI System Jag S6 E-type 4.2 RHD

Details of Base kit

Lucas Fuel Injection Conversion Kit

The Lucas Fuel Injection Kit includes everything you will need for the full conversion to fuel injection

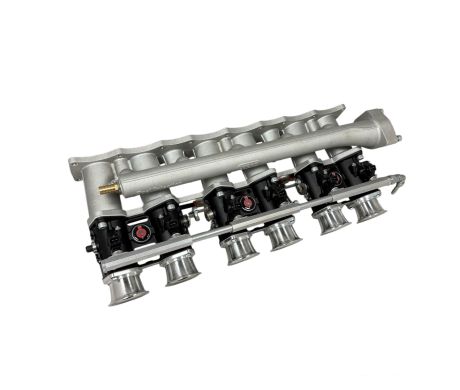

  • A fully pre-assembled Lucas Inlet Manifold including three twin fuel injection throttle bodies with a built-in throttle position sensor and injectors, stylish intake trumpets and comprehensive linkage designed to give the system a ‘retro’ feel while retaining all of the advantages associated with modern electronic fuel injection.
  • A race style throttle mechanism designed to link directly to the original throttle pedal via cable and bell crank.
  • A fully mappable ECU, pre-loaded with a basic map which can be used as a starting point for rolling-road tuning.
  • A self-contained submerged High Pressure Fuel Pump with a built-in regulator and in-tank return designed to give a regulated high-pressure supply to the manifold fuel rail under all driving conditions.
  • A three-module ‘Wasted Spark’ coil pack and mounting bracket, replacing the traditional distributor and located in the same position. This means that the supplied high-tension leads follow the original path for authentic appearance.
  • A full complement of sensors including: crank position sensor and mounting bracket; ambient air pressure sensor; ambient air temperature and manifold coolant temperature sensors; oil pressure sensor that prevents the engine from firing until oil pressure is detected and cutting the engine if pressure is lost; oxygen sensors for each exhaust manifold, supplied with mounting bosses which can be inserted into the existing exhaust system and provide tuning feedback for precise air/fuel ratio measurements.
  • Complete electrical harness with pre-fitted connectors, relay pack and fuse box, all labelled to aid installation.

Find out more about the Lucas Fuel Injection Kit here

Watch the video here



For more details and prices on this kit, please contact SNG Barratt Group

Contact Number: +44 (0)1746 765432

Website: www.sngbarratt.com/



All prices exclude VAT

All prices include VAT

Call For Price

View Shipping & Returns
Build Your Kit
Lucas EFI System, Jag S6 E-type, 4.2 RHD   + £0.00 £0.00

* Required Fields

View Drawing Manifold Drawing
View Instructions Fitting Instructions
