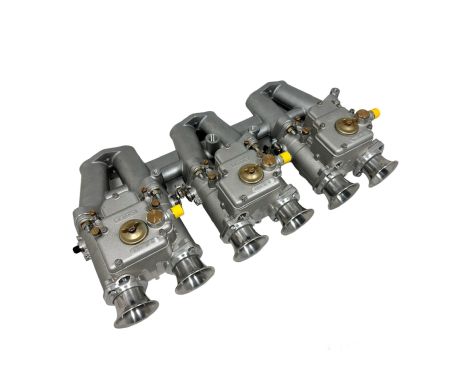

Triumph TR6 Heritage Throttle Body ITB Kit - Std Levers

Details of Base kit

The Jenvey Triumph TR6 Heritage electronic fuel injection (EFI) individual throttle body kit (ITB) has been design and developed in house to significantly improve throttle response and reliabilty of your engine whilst producing more power and better fuel economy.

This classic car fuel injection kit includes a cast DCOE manifold, 3 DCOE Heritage Throttle Bodies with built in fuel rail, injectors and TPS. It also includes 40mm long air horns. This kit comes with standard levers to run our CLS3 linkage kit.

Kit performance is enhanced by careful positioning of the EFI fuel injectors being located further upstream than standard and directly in the part throttle turbulence of the butterfly.  This allows increased time/distance for improved fuel mixing increasing torque and power where its needed.  Our spindles profiled to minimise cross sectional area at full throttle and an 8 degree shut angle (shallower than most) gives finer control at small throttle openings.  Our kits come built and balanced ready to fit you your engine and win races.

Jenvey Dynamics design, develop and manufacture all products in house often working with leading engine builders.  Uniquely, with our own foundry, all castings are created in the same factory that they are machined and built in.  Our cast systems are significantly lighter than fully CNC parts and all major components are backed up by rig tests of over 1 million cycles.  All our standard kits are proven but our throttle systems are extremely modular allowing bespoke throttle sizes and system lengths. Please order components individually for bespoke application.

This Jenvey kit requires an aftermarket ECU.

Drawing and other information can be found at the bottom of the page

Option and Accessories

Cable linkage kit option CLS3

An idle air system can help make road cars more useable but is not required with electronic actuation

You can use our individual mesh filters or domed foam filters

Price From £3,936.00 £3,280.00

All prices exclude VAT

All prices include VAT

Build Your Kit
Triumph TR6 heritage Kit STD levers   + £3,936.00 £3,280.00

* Required Fields

Price as Configured

All prices exclude VAT

All prices include VAT

£3,936.00 £3,280.00
