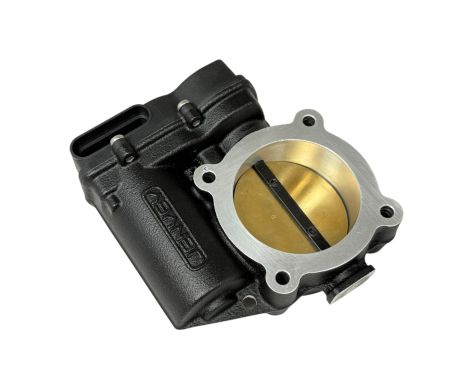

Single Electronic Throttle body 60-70mm

The Jenvey SFGZXX Motorsport single electronic throttle body has been created specifically for use with motorsport and high-performance engines. Designed for single large throttle systems.

All major components, with the exception of the high-performance DC motor, have been designed, developed and manufactured at the Jenvey Dynamics headquarters in the UK. Prototype tests have exceeded 1,000,000 cycles of normal operation without failure.

The SFGZXX consists of a DC Motor with glass-fibre, self-lubricating reduction gearing. It can be driven in either direction and includes an adjustable limp home module.

Advantages of electronic actuation include: packaging, auto-blip for paddle shift, launch control, anti-lag, switchable pedal map, controllable push to pass strategy, pit lane speed control, traction control, warm-up (increased airflow), soft engine safe mode, load compensation, and the ability to combine with torque based strategies allowing ancillary load compensation and hybrid integration.

In all applications it is necessary to seek advice from the ECU supplier regarding the essential tuning of the throttle control system (normally a PID or PI control) and the associated safety systems. Ultimately electronic throttle applications are safer than mechanical cable application due to evaluation of the pedal position, and subsequent checks against throttle position, the removal of mechanical friction and the ability to power the throttles closed.

• SKU: SFGZXX
• Weight: 0.49 KG
