Porsche 3 Stud - SF51 Taper ITB Kit 46IN xxOUT
Details of Base kit
The Jenvey Porsche electronic fuel injection (EFI) individual throttle body kit (ITB) has been design and developed in house to significantly increase performance and throttle response of your engine leading to a reduction in lap times. This kit is for the 3.6 and 3.8 litre 964 cars.

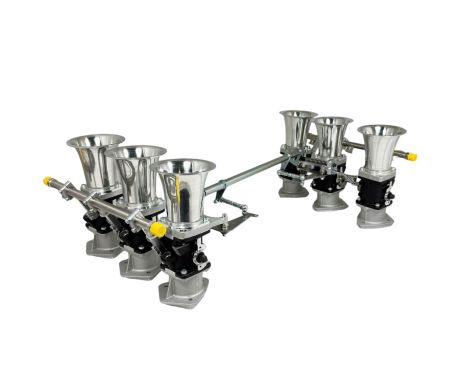

Porsche Individual Throttle Body (ITB) kit for fuel injecting your aircooled Porsche engine as used in 964 style cars. The kit contains inlet manifolds, SF51 taper throttle bodies (48mm butterfly), linkage kit, fuel rail, fuel rail mounts and a set of tapered airhorns.
CKPE01 3 Stud Small Bore Kit
CKPE02 2 Bolt Big Bore Kit
CKPE07 Heritage 3 Stud Kit
Kit performance is enhanced by careful positioning of the EFI fuel injectors being located further upstream than standard and directly in the part throttle turbulence of the butterfly. This allows increased time/distance for improved fuel mixing increasing torque and power where its needed. Our spindles profiled to minimise cross sectional area at full throttle and an 8 degree shut angle (shallower than most) gives finer control at small throttle openings. Our kits come built and balanced ready to fit you your engine and win races.
Jenvey Dynamics design, develop and manufacture all products in house often working with leading engine builders. Uniquely, with our own foundry, all castings are created in the same factory that they are machined and built in. Our cast systems are significantly lighter than fully CNC parts and all major components are backed up by rig tests of over 1 million cycles. All our standard kits are proven but our throttle systems are extremely modular allowing bespoke throttle sizes and system lengths. Please order components individually for bespoke application.
This Jenvey kit requires an aftermarket ECU.
Drawing and other information can be found at the bottom of the page
Option and Accessories
Throttle operation comes included in the base kit
An idle air system can help make road cars more useable but is not required with electronic actuation
We offer a range of injectors but recommend Bosch 412cc for this kit – see our injector sizing chart.
To fit a panel filter to this kit a carbon 50mm dished backplate is required. ABF-KIT-CKPE01
For the 90mm airhorns the kit comes with we recommend a 65mm filter (if you have the space)
Price From £2,895.60 £2,413.00
All prices exclude VAT
All prices include VAT
