Chevrolet LS3 Down - SFD52 ITB Kit - Electronic Actuation
Details of Base kit
Chevrolet Individual Throttle Body (ITB) kit for fuel injecting your Chevrolet LS3 engine is designed specifically for motorsport applications offering exceptional performance, lightness, reliability and looks. Modular components allow easy bespoking to match the application.

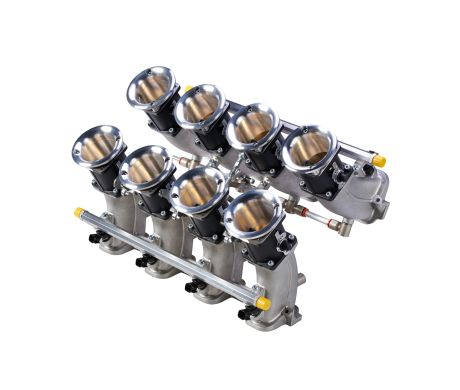

The base kit includes eight SFD 52mm throttle bodies, billet air horns, electronic actuator with linkage and a pair of lightweight manifolds with fuel rails to suit the standard injectors.
CKCT03 - LS3 Crossover
CKCT04 - LS3 Downdraft
CKCT05T - LS7 Downdraft
Kit performance is enhanced by careful positioning of the EFI fuel injectors being located further upstream than standard and directly in the part throttle turbulence of the butterfly. This allows increased time/distance for improved fuel mixing increasing torque and power where its needed. Our spindles profiled to minimise cross sectional area at full throttle and an 8 degree shut angle (shallower than most) gives finer control at small throttle openings. Our kits come built and balanced ready to fit you your engine and win races.
Jenvey Dynamics design, develop and manufacture all products in house often working with leading engine builders. Uniquely, with our own foundry, all castings are created in the same factory that they are machined and built in. Our cast systems are significantly lighter than fully CNC parts and all major components are backed up by rig tests of over 1 million cycles. All our standard kits are proven but our throttle systems are extremely modular allowing bespoke throttle sizes and system lengths. Please order components individually for bespoke application.
This Jenvey kit requires an aftermarket ECU.
Drawing and other information can be found at the bottom of the page
Option and Accessories
This kit includes electronic throttle actuator
An idle air system can help make road cars more useable but is not required with electronic actuation
We offer a range of injectors but recommend Bosch 412cc for this kit – see our injector sizing chart.
Please note that foam air filters are not compatible with this particular kit.
Price From £4,087.20 £3,406.00
All prices exclude VAT
