Rover K DTH 42mm ITB Kit

Details of Base kit

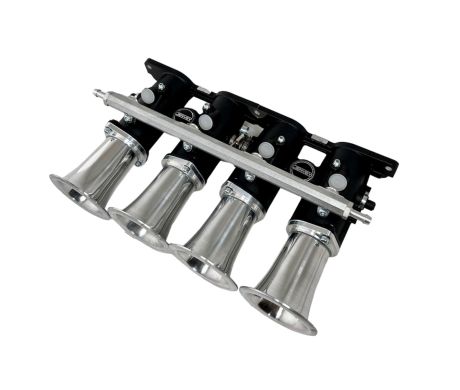

The Rover K Individual Throttle Body (ITB) kit for fuel injecting your Rover K series engine which contains a linked pair of 42mm throttle bodies which attach directly to the cylinder head, fuel rail and four 90mm long air horns.

This engine was used in Rover Metro, 200, MGF, Lotus Elise, Caterham and many kit cars. Made to order.



Kit performance is enhanced by careful positioning of the EFI fuel injectors being located further upstream than standard and directly in the part throttle turbulence of the butterfly.  This allows increased time/distance for improved fuel mixing increasing torque and power where its needed.  Our spindles profiled to minimise cross sectional area at full throttle and an 8 degree shut angle (shallower than most) gives finer control at small throttle openings.  Our kits come built and balanced ready to fit you your engine and win races.

Jenvey Dynamics design, develop and manufacture all products in house often working with leading engine builders.  Uniquely, with our own foundry, all castings are created in the same factory that they are machined and built in.  Our cast systems are significantly lighter than fully CNC parts and all major components are backed up by rig tests of over 1 million cycles.  All our standard kits are proven but our throttle systems are extremely modular allowing bespoke throttle sizes and system lengths. Please order components individually for bespoke application.

This Jenvey kit requires an aftermarket ECU.

Drawing and other information can be found at the bottom of the page


Option and Accessories

Throttle operation used CLS1 single linkage and LBD1 Rover K Bracket

An idle air system can help make road cars more useable but is not required with electronic actuation

We offer a range of injectors but recommend pico 330cc for this kit – see our injector sizing chart.

To fit a panel filter to this kit a carbon 50mm dished backplate is required. ABF-KIT-RV02

 For the 90mm airhorns the kit comes with we recommend a 90mm filter (if you have the space)

Price From £1,063.20 £886.00

All prices exclude VAT

All prices include VAT

Build Your Kit
Rover K DTH 42mm Kit   + £1,063.20 £886.00

* Required Fields

Price as Configured

All prices exclude VAT

All prices include VAT

£1,063.20 £886.00

View Drawing Product Drawing
View Drawing Throttle Body Kit Drawing
View Document Fuel System Setup
